CAS667201KR Camera system 7″ TFT
£249.95 each net

Part number
CAS667201KR
EAN 8716106195091
Unit
Set
Long description
Camera system CAS 81302
Specifications
  • Two camera inputs and automatic channel switching
  • The camera has 18 infrared LEDs
  • Stable and vibration-resistant
Benefits
  • Improved visibility in low-light environments
  • High quality and long service life
Application
  • For construction and agricultural machines
  • For monitoring e.g. harvesting or reversing procedures or blind spots
Properties
  • Separate mirror-imaging of all channels
  • On-screen menu in four languages
  • Temperature range (monitor): -20 to +70 C
  • Temperature range (camera): -30 to +70 C
  • Lens: Sony 1/4″ CCD
  • Camera resolution: NTSC 510 x 492, 420 lines of horizontal resolution
  • Signal-to-noise ratio > 48 dB
  • Camera power supply: 12 V AC
  • Camera power consumption: < 2 watt

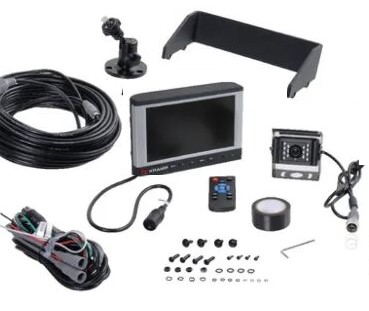

Consists of
  • TFT widescreen monitor with colour and sound (7″, 16:9)
  • Camera with built-in microphone
  • Connecting cable: 20 m
  • Remote control (on/off, camera selection, menu and volume control)
  • Connection cable for monitor
  • Fasteners
  • Installation prop
  • Removable shockproof sun visor
Technical information
  • 1-year warranty
  • Meets standards E13, ROHS, CE, Salt-Spray and FCC
  • The camera is waterproof (IP68)
  • The screen is not waterproof (IP30)
  • The camera has a stable DIN screw connection (IP67)
Long description
  • Application:
  • Suitable as reversing camera on trucks, transporters, tractors and earth moving machinery
  • For process monitoring on agricultural machines
  • Consist of:
  • 1 x colour monitor
  • 1 x sun shield for monitor
  • 1 x monitor support
  • 1 x remote control for all functions
  • 1 x colour camera 92° mirrored
  • 1 x camera connecting cable 20 m
  • Installation Kit
  • Instruction manual
  • Details:
  • IP68 waterproof camera
  • Properties:
  • Remote control for screen functions and channel selection
  • Voltage range 8 to 32 V
  • 2 connections for cameras
  • – 2 priority circuits (for automatic channel selection, e.g. when engaging reverse)
  • 7″ TFT LCD colour screen with sunshade
Supply voltage range
12-24 V
Horizontal viewing angle
92 °
